Hand Push Trolley Beam Trolley with Lifting Hoist
0.5 ton, 1 ton, 2 ton, 3 ton, 5 ton, 10 ton
Our Company's Type: Factory
Customers' Types: Importers, Distributers, Wholesalers
Products Description:

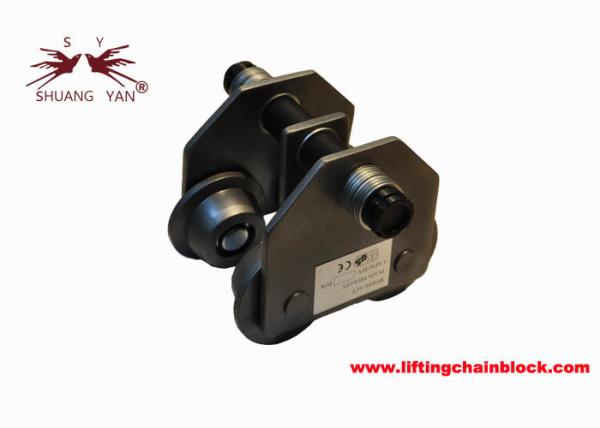

GCT/GCL series trolley ,running on the bottom flange of monorail,
is hand-operated by pulling hand chain. Attached with chain hoist
it can form a trolley type chain hoist which is used widely in
factory, mines, engine room and other places for installing
equipment as well as conveying goods, they are warehouse preferred
where is no power.
Specification:
| Model (GCL-B) | | | GCL B 0.5 | GCL B 1 | GCL B 2 | GCL B 3 | GCL B 5 | GCL B 10 | GCL B 20 |
| Capacity | | Ton | 0.5 | 1 | 2 | 3 | 5 | 10 | 20 |
| Test load | | Ton | 0.63 | 1.25 | 2.5 | 4 | 6.3 | 12.5 | 25 |
| Min. radius of curve | | m | 1 | 1 | 1.3 | 1.5 | 1.6 | 2.2 | 5 |
| I-beam recommended | | mm | 68-130 | 68-130 | 88-146 | 110-154 | 116-170 | 130-180 | 136-180 |
| Dimensions | A | mm | 262 | 266 | 281 | 307 | 320 | 413 | 460 |
| B | mm | 200 | 223 | 258 | 296 | 344 | 400 | 810 |
| C | mm | 173.5 | 205.5 | 232 | 282 | 327 | 423.5 | 438 |
| H | mm | 111 | 131 | 143 | 176 | 204 | 239 | 242 |
| Net weight | | kg | 10.4 | 12.5 | 18.5 | 26.1 | 38.1 | 70 | 150 |
| Gross weight | | kg | 11.2 | 13.5 | 20 | 27.8 | 40.3 | 80 | 165 |
Products Details:
- Color orange, red, gray, black ect.
- 0.5 ton - 20 ton capacity, contact us for other tonnage
customization
- Parts supply fully and rapidly
- Surface treatment: painting, galvanized
Company profile:
The former Chongqing Chain Block factory, with more than 40 years
history of manual hoist production, is now Chongqing Kinglong
Machinery Co.,LTD, located in Chongqing, China. The company
occupies an area of 27,000 square meters, among which the workshop
has 14,000 square meters, staying on the road side with a distance
of 3km from Chongqing West Railway Station and around 28km from
Chonqging port. Both land and water transportation are convenient.
With experiences on producing manual hoists for more than 40 years,
we have possessed perfect testing devices and the advanced
equipment, including seven computer-controlled lines for high
strength chains imported from Germany and Italy, and other
automatic and semiautomatic digital controlled machines. Our main
items are various models of chain blocks, lever blocks, trolley and
high strength chains as well as chain assembly. As one of the
biggest professional manufacturers of china blocks in China, our
present production for chain blocks has reached 250,000 sets and
high strength chains 1,250,000 meters in a year.
Our own brands "SHAN CHENG" "Shuangyan" for chain block, lever
block and trolley are very popular in domestic and overseas because
of their high quality.
The principle of Chongqing Kinglong Machinery Co.,LTD is dedicated
to provide the first-class products and satisfactory services after
sales.
Advantages:
Production Advantage---27,000 square meters, 250,000 sets chain
block production ability, G80 chain 1,250,000 meters per year
- Equipment Advantage---seven computer-controlled chains lines from
Europe, two assembly line for chain block, over 100 machines for
parts and middle process treatment
- Quality Advantage---ISO9001, our big customers test annually, CE
certification, GS certification
- Brand Advantage---"Shancheng" & "Shuangyan" very famouse in
domestic for many years
- Service Advantage---Product diversity, Customer satisfactory First,
Quality No. 1, Service No. 1.
