Material Lift Hardened Steel Racheted Simple Hoist Block

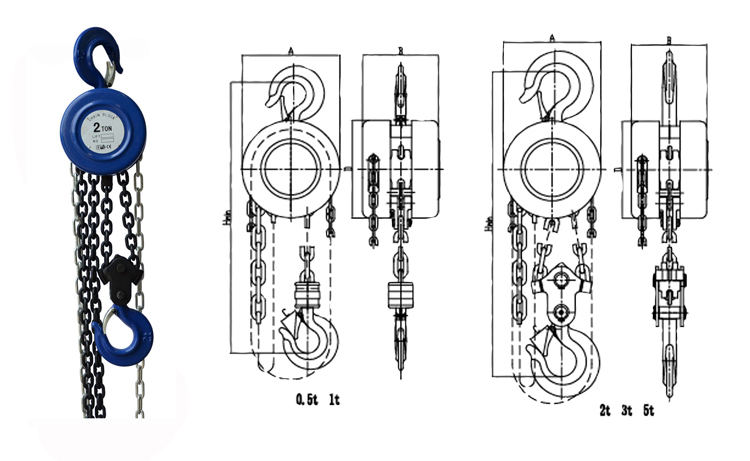

Products Drawing and Specification:
| Model | | HSZ-0.5 | HSZ-1 | HSZ-1.5 | HSZ-2 | HSZ-3 | HSZ-5 | HSZ-7.5 | HSZ-10 | HSZ-20 |
| Capacity | Ton | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 7.5 | 10 | 20 |
| Lift | m | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 |
| Test Load | Ton | 0.625 | 1.25 | 1.87 | 2.50 | 3.75 | 6.25 | 9.375 | 12.5 | 25 |
Min.Distance Between Hooks | mm | 280 | 300 | 360 | 380 | 470 | 600 | 650 | 730 | 1000 |
| Chain pull to lift full load | N | 170 | 340 | 390 | 340 | 390 | 420 | 395 | 450 | 450 |
| No. of load chain | | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 4 | 8 |
| Diameter of load chain | mm | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 | 10 |
| Dimensions | mm | A | 142 | 142 | 178 | 142 | 178 | 210 | 336 | 358 | 580 |
| B | 126 | 126 | 142 | 126 | 142 | 165 | 165 | 165 | 195 |
| C | 24 | 28 | 32 | 34 | 38 | 48 | 57 | 64 | 82 |
| D | 142 | 142 | 178 | 142 | 178 | 210 | 210 | 210 | 210 |
| Net weight | kg | 9.5 | 10 | 15 | 14 | 24 | 36 | 53 | 68 | 150 |
| Gross weight | kg | 10 | 10.3 | 15.7 | 14.5 | 24.8 | 37.3 | 64 | 79 | 173 |
| Packing measurement(LWH) | cm | 25*18*16 | 25*18*16 | 26*23*18 | 27*20*16 | 32*23*18 | 41*30*21 | 25*18*17 | 62*50*27 | 80*70*36 |
| Extra weight per meter of extra lift | kg | 1.7 | 1.7 | 2.3 | 2.5 | 3.7 | 5.3 | 7.7 | 9.7 | 19.4 |
Production Description:
- 2 ton * 2.5 m
- color blue
- grade 80 chain, black color
Producing Picture Showing:
Package Options:
- carton box
- plywood box
- wooden box
- pallet
- per your requirements
Certification of GS and CE 2020
Company Information:
Chongqing KingLong Machinery Co.,LTD founded in April 22th 1999.
The former company name is Chongqing Chain Block Works. Untill now,
it go through over 50 years in chain block area.
We are located in No.9 Hualong Ave, Jiulong Industrial Zone,
Jiulongpo Dist, Chongqing, China. With over 100 emplyees, our
factory has 27000 square meters including chain block assembly
line, lever block & beam trolley assembly line, chains assembly
line, different parts model workshops, parts treatment workshop,
warehouse, office house ect.
Our factory get ISO9001 certification, GS and CE certifications.
anually over 20,0000pcs chain blocks and one million meters loading
chains.
Advantages:
♦ Production Advantage
Professional chain block manufacturer
Our factory occupies an area of 27,000 square meters, among which
the workshop has 14,000 square meters. Production ability for chain
blocks has reached 250,000 sets and high strength chains 1,250,000
meters per year.
♦ Equipment Advantage
Possess perfect testing devices and the advanced equipment,
including seven computer-controlled lines for high strength chains
imported from Germany and Italy, and other automatic and
semiautomatic digital controlled machines.
♦ Quality Advantage
ISO system for factory and perfect testing machines for chain,
semi-finished products and finished products, with qualified
quality controllers in production lines, and 100% quality
guaranteed.
♦ Brand Advantage
Domestic and international famous brands"Shancheng", "Shuangyan"
and "KingLong"for 40 years
♦ Service Advantage
Product diversity, Customer satisfactory First, Quality No. 1,
Service No. 1.
