Yellow Easy Rigging Triangle Manual Chain Tackle
Products Drawing & Specification:
| Model | | HSZ0.5-K | HSZ1-K | HSZ1.5-K | HSZ2-K | HSZ3-K | HSZ5-K | HSZ10-K | HSZ15-K | HSZ20-K |
| Capacity | Ton | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 15 | 20 |
| Lift | m | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 |
| Test Load | Ton | 0.63 | 1.25 | 2 | 2.50 | 4 | 6.3 | 12.5 | 20 | 25 |
| Chain pull to lift full load | N | 260 | 323 | 356 | 390 | 370 | 410 | 436 | 460 | 440 |
| No. of load chain | | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 6 | 8 |
| Diameter of load chain | mm | 5 | 6 | 7.1 | 8 | 7.1 | 9 | 10 | 10 | 10 |
| Dimensions | mm | A | 138 | 156 | 184 | 198 | 230 | 285 | 383 | 435 | 680 |
| B | 128 | 144 | 153.5 | 162.5 | 153.5 | 184 | 184 | 184 | 229 |
| C | 310 | 370 | 400 | 410 | 530 | 670 | 750 | 1000 | 1040 |
| D | 29 | 30 | 33 | 33 | 47 | 50 | 62 | 80 | 80 |
| Net weight | kg | 7.5 | 10.2 | 15 | 16 | 21.5 | 36 | 70 | 117 | 162 |
| Extra weight per meter of extra lift | kg | 1.4 | 1.7 | 1.9 | 2.2 | 3 | 4.4 | 9.4 | 13.5 | 18.6 |
Production Description:
- 2 Ton*3 M
- Color Yellow (orange is one of the most popular color)
- G80 Load chain, blacken
- Galvanized hand chain
- Forged hook
- Accept parts supply (most parts are designed and made by ourselves)
HSZ-K Model Advantages
- The HSZ-K Series Chain Block is our newest development product, and sales are very hot.
- It is designed on the most advanced principles of Japan
- The chain blocks have been improved the inner structure and
incrased the material grade of some important parts to make them
for longer life and for more safe in operation.
- Also these spare parts is easy to disassemble, it brings more and
more easy in maintenance and convenient in repairment.
- Besides it is with good performance, more attractive in appearane.
It is the best choice for using hand tools.

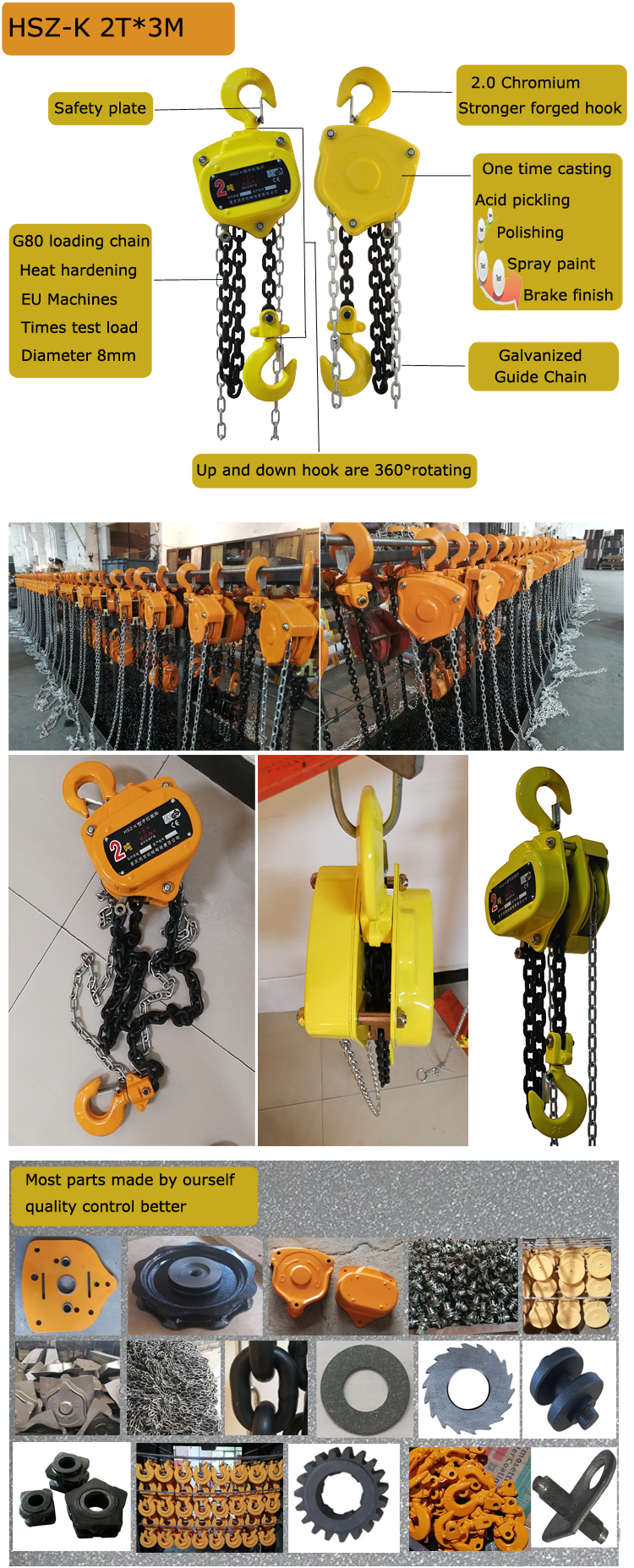

Proucts Pictures:
Products Package:
Carton box normally
Other package selection---Plywood box, wooden box, pallet, others
customization
RFQ:
1. Are you a factory or a trading company?
We are a factory. We specialize in producing chain block, lever
block, beam trolley, loading chain, hand chain, and their parts.
2. How about your quality control before shipment?
All products will been strictly checked and tested before packing
and shipping.
3. How long is the warranty ?
The whole machine of all our products have 12 months warranty.
4. Is your product customized?
Yes, all our products are customized as customers’detailed
requirements!
5. What about the leadtime for mass products?
Generally about 30 days, but depends on the quantity.
6. What’ the detailed information should be provided when sending
inquiry?
Material of the lifting chain,Length of lifting chain,Maximum
lifting weight of the hoist,the working environment
HSZ-K Series (0.5 T/ 1 T/ 2 T/ 5 T/ 10 T) Randon Workshop Photoes:
0.5 Ton
1 Ton
2 Ton
5 Ton
10 Ton
Factory Information:
The former Chongqing Chain Block Works with more than 50 years
history of manual hoist production, is located in No.9 Hualong
Ave,Jiulong Industrial Zone,Jiulongpo Dist Chongqing and covers an
area of 27000 square meters,among Which the productive construction
area is 14000 square meters, The factory stays on the road side
with a distance of 3 km from Chongqing East Railway Station,10km
from Jiulong port, the land and water transportation are
convenient.
With experiences in producing manual hoists for more than 40 years,
we have possessed the perfect testing devices and the advanced
equipments, including seven computer-controlled lines for high
strength chains imported from Germany and Italy, and other
automatic and semiautomatic digital controlled machines ,Our main
items are various models of chain blocks, lever blocks, trolley and
high strength chains as well as chain assembly. As one of biggest
professional manufacturers of chain blocks in China, our present
production for chain blocks has reached 200,000pcs and high
strength chains 1,000,000 meters in a year.
