Vital Fast Speed Chain Fall 3 Meters Lifting Pulley Block
Products Description
- Latest developed products
- Designement based on the most advanced principles of Japan. The
inner structure was improved and material grade of some important
parts increased to make a longer life and more safe in operation.
- Spare parts easily disassembled, more convenient & easy in
maintenance and repairment.
Products Detail Information
- Color: Orange
- Lifting Weight: 10 Ton
- Lifting Height: 3M
- Loading Chain: Grade 80, Blacken surface treatment
- Hand Chain: Galvanized
- Form E /CO: Provided
- Qaulity test: Accept both from customer or the third party
- Package: Wooden Box
- Customization: Acceptable both on products and package
- Parts supply: Full and Quicky
Products Data Sheet
HSZ-K Series Specification| Model | | HSZ0.5-K | HSZ1-K | HSZ1.5-K | HSZ2-K | HSZ3-K | HSZ5- K | HSZ10-K | HSZ15-K | HSZ20-K |
| Capacity | Ton | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 15 | 20 |
| Lift | m | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 |
| Test Load | Ton | 0.63 | 1.25 | 2 | 2.5 | 4 | 6.3 | 12.5 | 20 | 25 |
| Chain pull to lift full load | N | 260 | 323 | 356 | 390 | 370 | 410 | 436 | 460 | 440 |
| No. of load chain | | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 6 | 8 |
| Diameter of load chain | mm | 5 | 6 | 7.1 | 8 | 7.1 | 9 | 10 | 10 | 10 |
| Dimensions | mm | A | 138 | 156 | 184 | 198 | 230 | 285 | 383 | 435 | 680 |
| B | 128 | 144 | 153.5 | 162.5 | 153.5 | 184 | 184 | 184 | 229 |
| C | 310 | 370 | 400 | 410 | 530 | 670 | 750 | 1000 | 1040 |
| D | 29 | 30 | 33 | 33 | 47 | 50 | 62 | 80 | 80 |
| Net weight | kg | 7.5 | 10.2 | 15 | 16 | 21.5 | 36 | 70 | 117 | 162 |
| Extra weight per meter of extra lift | kg | 1.4 | 1.7 | 1.9 | 2.2 | 3 | 4.4 | 9.4 | 13.5 | 18.6 |
Proucts Parts & Finished:
Most parts are baking finished, every item is tested before packing
Products Other Tonnage Selection:
| 500kg | 1000kg |
 |  |
| 2000kg | 3000kg |
 |  |
| 5000kg | 10000kg |
 |  |
| Tonage: 0.5T to 50Ton | Lifting Height: 1m-100m |
Company Information
We are an over 50 years factory professional in chain block, lever block, Electric Hoist, G80 chains, I-Beam Trolley
Chongqing KingLong Machinery Co.,LTD founded in April 22th 1999.
The former company name is Chongqing Chain Block Works. Untill now,
it go through over 50 years in chain block area.
We are located in No.9 Hualong Ave, Jiulong Industrial Zone,
Jiulongpo Dist, Chongqing, China. With over 100 emplyees, our
factory has 27000 square meters including chain block assembly
line, lever block & beam trolley assembly line, chains assembly
line, different parts model workshops, parts treatment workshop,
warehouse, office house ect.
Our factory get ISO9001 certification, GS and CE certifications.
anually over 20,0000pcs chain blocks and one million meters loading
chains.

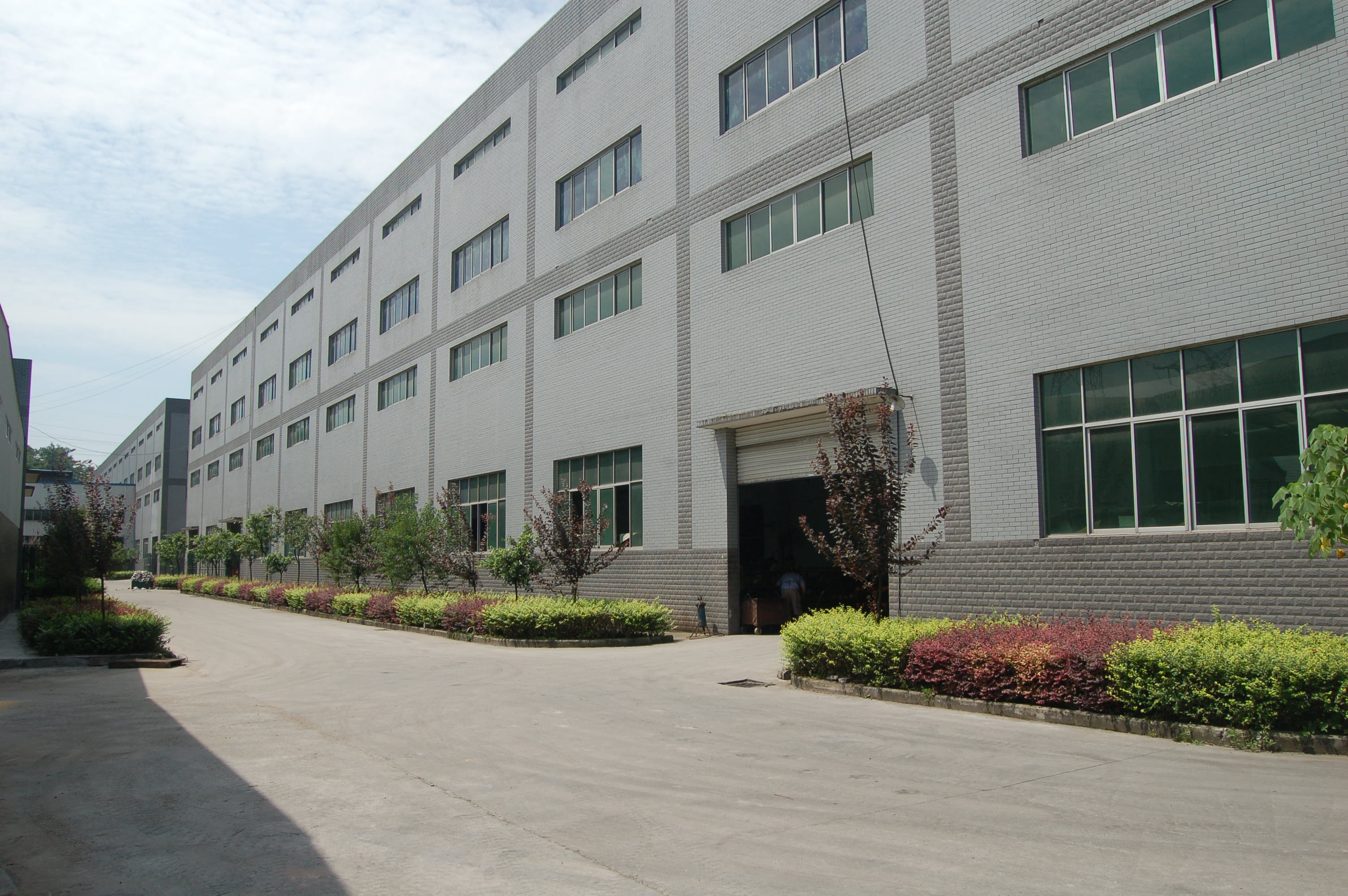

Factory Scan
Chain Block and Lever Block Assemble Workshop
Strength Chains Assemble Workshop

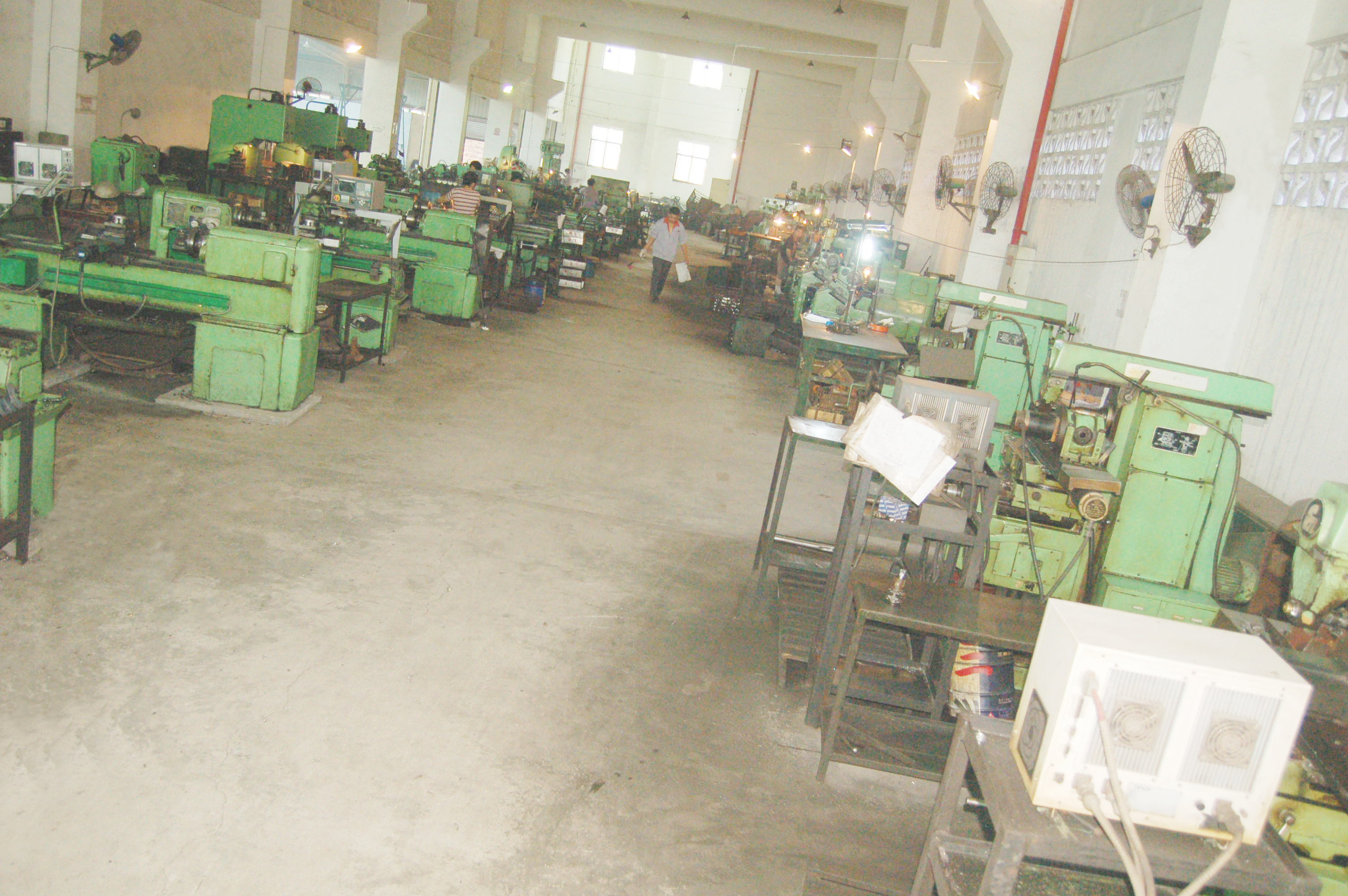

Spare Parts Product Work Shop
Heat Treatment Workshop
Package Warehouse
Our Company Advantages:
Production Advantage
- Professional chain block manufacturer
- 27,000 square meters
- Production ability for chain blocks has reached 250,000 sets and
high strength chains 1,250,000 meters per year.
Equipment Advantage
- Seven computer-controlled lines for high strength chains imported
from Germany and Italy
- Many automatic and semiautomatic digital controlled machines for
producting parts,
- Testing device ect
Quality Advantage
- ISO system for factory
- Perfect testing machines for chain, semi-finished products and
finished products.
- Qualified quality controllers in production lines, and 100% quality
guaranteed.
Brand Advantage
- Domestic and international famous brands"Shancheng", "Shuangyan"
and "KingLong"for 40 years
Service Advantage
- Product diversity, Customer satisfactory First, Quality No. 1,
Service No. 1.
